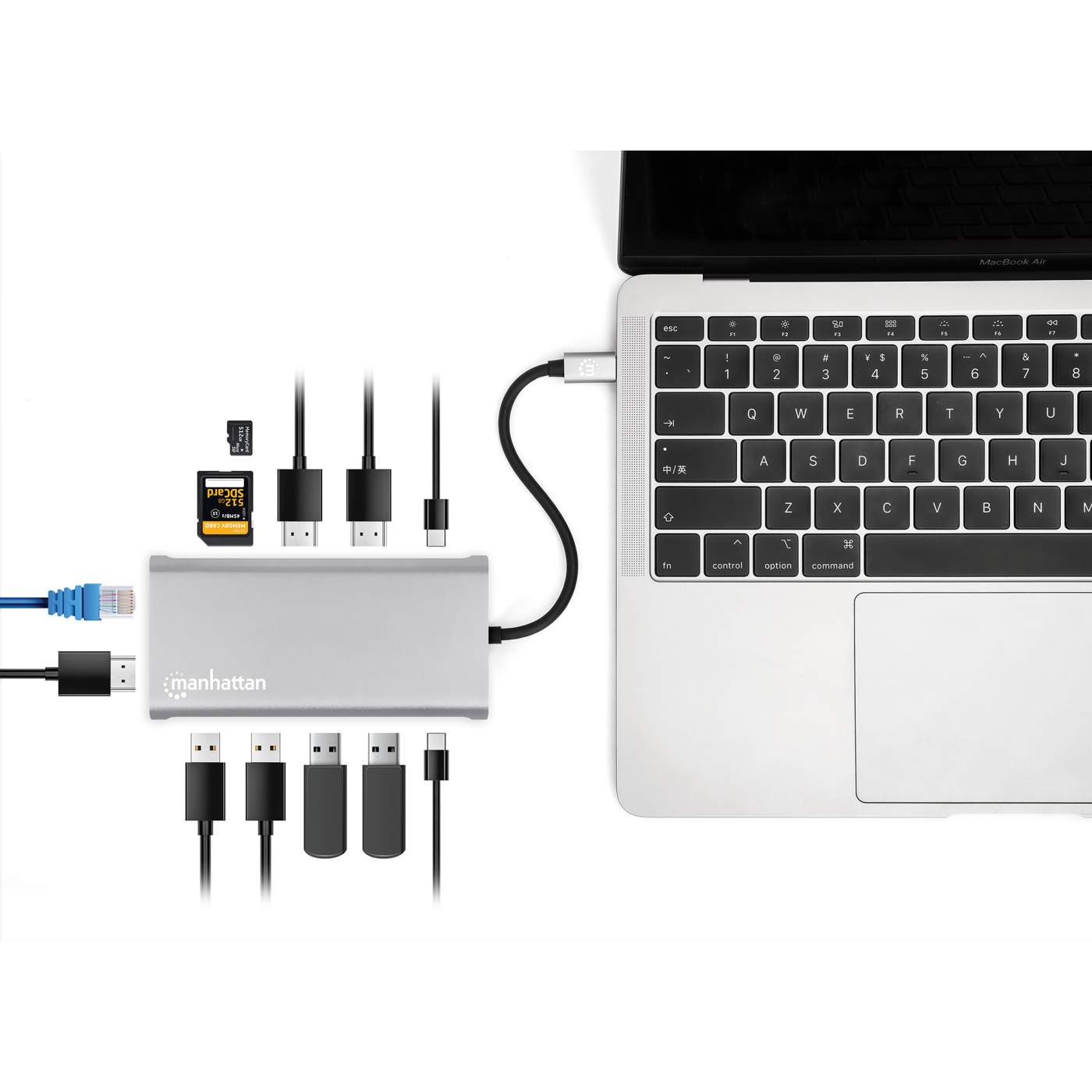

USB-C Docking Station with MST and PD Charging from Manhattan - Drive three HDMI monitors at once with 12 connections to your device

Increase your productivity with your desktop, notebook or tablet using this highly versatile docking station from Manhattan. Its Multi-Stream Transport (MST) technology helps you to multitask on three HDMI monitors at the same time. Add one HDMI monitor to your laptop display for 4K@60Hz images, two monitors for 4K@30Hz images or three monitors for 1080p@60Hz images.

Connections to all your peripherals

With five USB ports (4 x USB-A, 1 x USB-C) for mice, keyboards and flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks^®.

Up to 100 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power up to 100 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Take your phone to the big screen

Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.

A multiport adapter that's made to go where you go

Sturdy aluminum housing makes this multiport adapter the perfect travel companion. Despite its massive connectivity options, it’s still compact enough to fit right in your backpack or computer bag with your main device.

• Creates a multi-display setup, charges your devices and connects all your peripherals
• Resolution on single-video output up to 4K@60Hz, dual-video output up to 4K@30Hz or triple-video output up to 1080p@60Hz
• Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror or Extended Mirror only)
• One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming
• Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer rates up to 5 Gbps and charging up to 7.5 W (5 V / 1.5 A)
• One USB 3.2 Gen 1 Type-C data-only port with SuperSpeed transfer rates up to 5 Gbps
• Two USB 2.0 Type-A ports with transfer rates up to 480 Mbps and charging up to 2.5 W (5 V / 0.5 A)
• USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
• USB-C port to connect external hard drives and more or to sync mobile devices
• SD and microSD card slots with read/write function; slots support cards up to 2 TB and data transfer speeds up to 33 Mbps
• Supports USB Power Delivery (PD) function up to 100 W; requires an external PD charger - available from Manhattan
• Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple® MacBook®, Chromebook™, Pixel™ and more
• Compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
• Lets your smartphone work like a desktop PC while also charging it (desktop setup requires devices with Android 9 or above that offer video output over USB-C)
• Built-in, sturdy 18 cm (7 in.) cable with molded aluminum boot
• Sturdy, sleek aluminum housing, great for both desktop and travel
• Plug-and-play installation; Windows®, macOS®, Chrome OS™ and Android™ compatible
• HDCP 2.2 compliant
• Three-year warranty

Standards and Certifications

• USB 3.2 Gen 1

• USB 2.0

• HDMI 2.0

• HDCP 2.2

• CE

• FCC

• RoHS

• REACH

• UKCA

  General

• Max. video resolutions:
  - If one video port is used, the max. resolution is 4K@60Hz
  - If two video ports are used at a time, the max. resolution per display is 4K@30Hz
  - If all three video ports are used at a time, the max. resolution per display is 1080p@60Hz

• USB-A ports 1 and 2 - data transfer speed: 5 Gbps; charging: 7.5 W (5.0 V at 1.5 A) max.

• USB-A ports 3 and 4 - data transfer speed: 480 Mbps; charging: 2.5 W (5.0 V / 0.5 A) max.

• USB-C port data transfer speed: 5 Gbps

• Supported flash cards: microSD, SD, SDHC and SDXC up to 2 TB

• Bus-powered operation (except charging functions)

• USB-C PD charging port: up to 100.0 W (20.0 V at 5.0 A) max.

  Connections

• One USB-C 24-pin, male

• Three HDMI 19-pin, female

• One 10/100/1000 Mbps RJ45, female

• Four USB-A 4-pin, female

• One SD memory slot

• One microSD memory slot

• One USB-C 24-pin, Power Delivery, female

• One USB-C 24-pin, data only, female

  Physical

• Aluminum housing

• Dimensions (L x W x H): 126 x 62 x 17 mm (4.96 x 2.44 x 0.67 in.)

• Net weight: 112 g (0.25 lbs.)

• Gross weight: 172 g (0.38 lbs.)

• Cable length: 18 cm (7 in.)

• Cable diameter: 34 AWG

  Operating Environment

• Operation temperature: 0 - 45°C (32 - 113°F)

• Storage temperature: -10 - 70°C (14 - 158°F)

• Humidity (noncondensing): 5 - 90% RH

  System Requirements

• Windows 7/8.1/10/11, Chrome OS, macOS or Android

  Package Contents

• USB-C PD 12-in-1 Triple-HDMI Monitor Docking Station with MST

• Instructions

Warning

This product can expose you to chemicals including Benzene, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B0BPSX3LMS
• EAN: 0766623130660
• UPC: 766623130660



• Physical Specifications

• Product net weight: 0.11 kg
• Product gross weight: 0.16 kg
• Dimensions: 126 (L) x 62 (W) x 17 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download




• Manual
• Quick Instruction Guide     » Download
